About Data Types and Hierarchy
When getting started with Manifest, or setting up a domain for the first time, it’s important to understand the basic data types and relationships. This section will cover the core data types, the Manifest data structure, and the relationship and dependencies connecting this data within Manifest.Manifest Primary Data Types
The Manifest data structure centers around these primary data types: Asset Class, Template, Location, and Asset.Asset Class
An Asset Class represents a type or category of equipment (typically identified by make and model). As an example, a Boeing 767 represents an Asset Class. This is the master “type” of aircraft identified by make = Boeing, and model = 767.Template
A Template is a repeatable set of work instructions. When workers performing a task with Manifest, they are following a procedure defined by a Template. Manifest Templates are characterized by numbered steps that must be completed in a sequential order. Templates could be a set of work instructions for a specific procedure or task, training material, or an inspection checklist.Location
A Location represents a physical address or geolocation where Assets are registered, and Jobs are performed. This association is optional. A Location can be a designated as a region, office, building, floor, work area, and so forth. It is the responsibility of the Domain Administrator to determine the appropriate way to segment Locations for a domain.Asset
An Asset represents a unique item or piece of equipment, likely with a serial number or unique identifier. Assets belong to an Asset Class and are assigned to a specific Location. Assets inherit data configured for an Asset Class, such as Templates, Meters, and documents, but maintain their own service history, Job queue, and telemetry data.Manifest Data Hierarchy

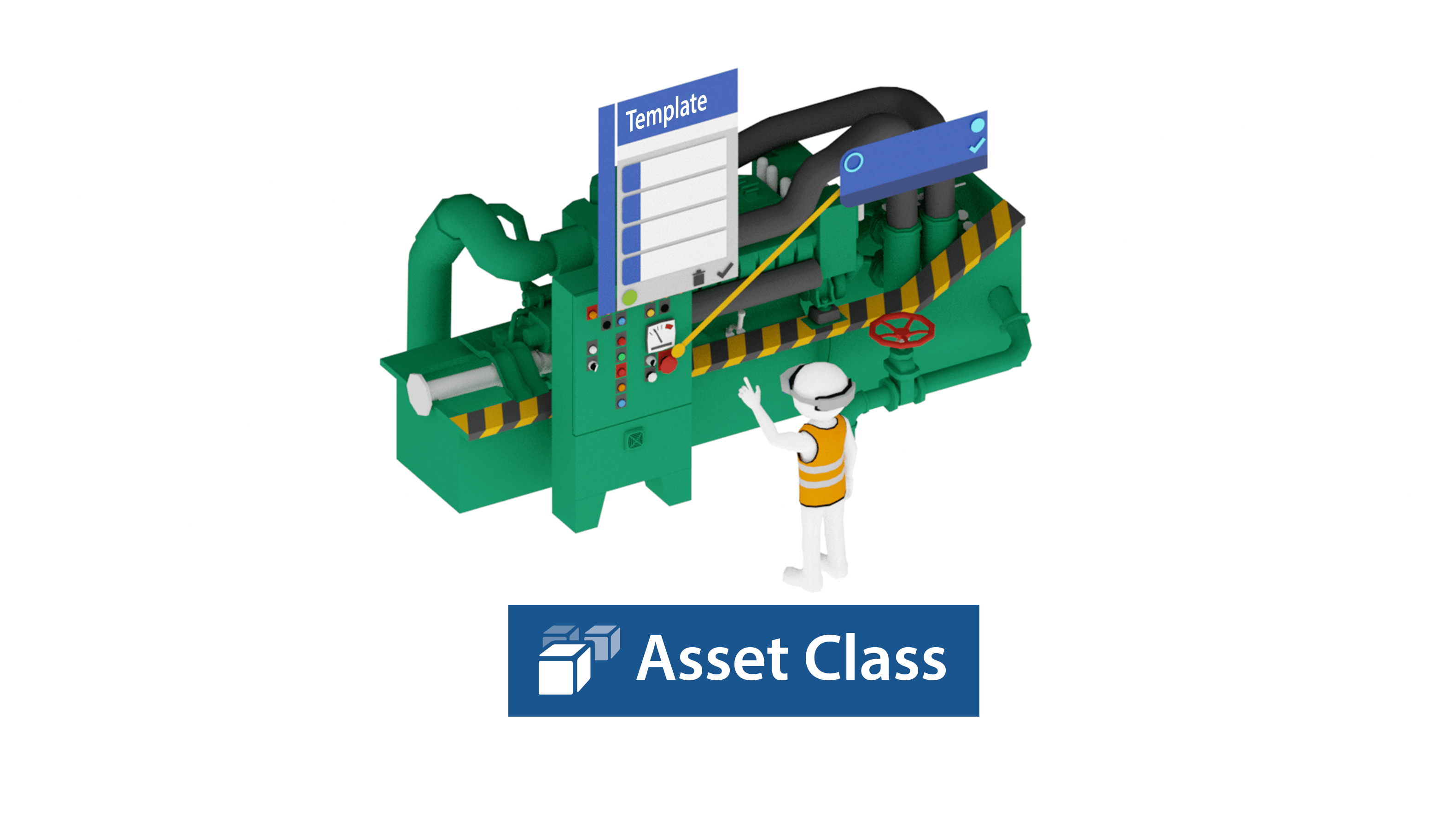

The Manifest data hierarchy refers to the way primary data types relate to one another. This is important to understand when configuring a domain and authoring Templates – so it’s clear how that data will connect or impact other areas. The Asset Class, or the category or type of equipment, is the parent data type.

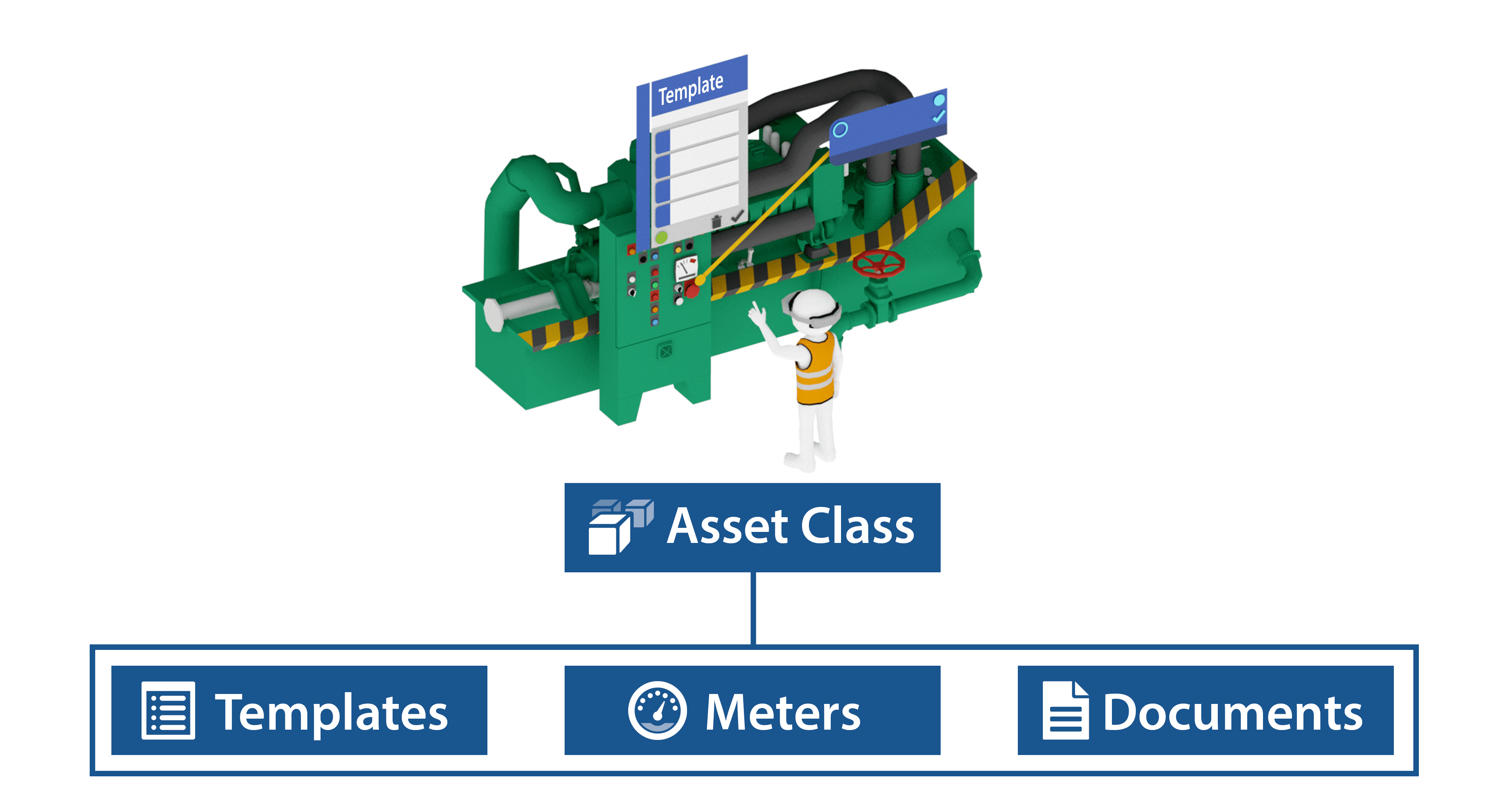

Asset Class entities: Since equipment manuals, procedural instructions, and Meters are defined and associated at the equipment type level - Documents, Templates, and Meters are stored in the Asset Class. This means any Document, Template, or Meter added or updated for an Asset or Asset Class will be updated for any Asset for that Asset Class.
The Location is where Assets are registered, and work is performed.
Assets are unique pieces of equipment nested under the Location data type. They inherit all data configured for their associated Asset Class.
Asset entities: Each Asset will maintain and store its’ own service history, Job queue, and Meter sensor data.
